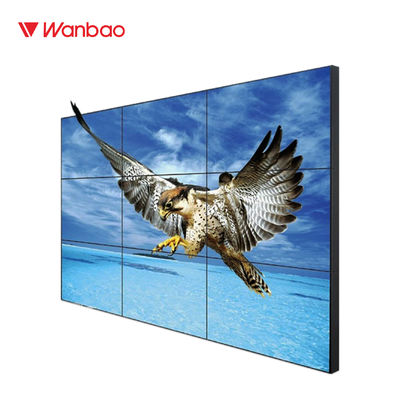

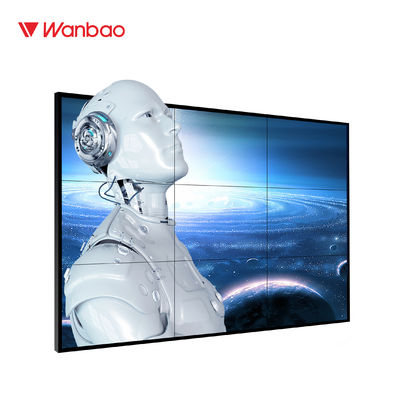

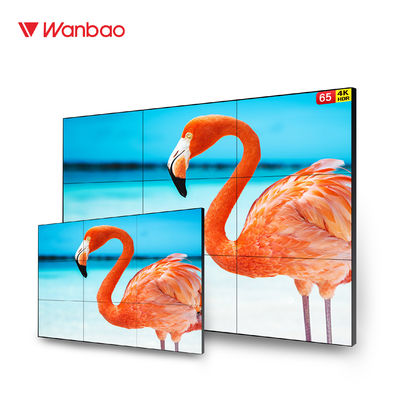

LCD VIDEO WALL
HD Display/ultra narrow edge gap/rich colors/arbitrary splicing
| products data | |||
| Model | HR55EB | Viewing angle | 178°(H)/178°(v) |
| panel type | 55'DID LED Panel(diagonal 1388MM) | Display color | 16.7M |
| Physical resolution | 1920(H)*1080(V) | video input | CVBS(BNC)*2;S-VIDEO(Y/C)*1 |
| Pixel pitch | 0.63mm*0.63mm | computer sigal input | DVI*1 |
| screen ratio | 16:9 | HD input | YPbPr*1,1080P(1920*1080)Backward compatible |
| Physical patchwork | 3.5mm(leval)*3.5mm(vertical) | Video output | CVBS(BNC)*2 |
| Response time | 8ms | large-screen bezel | inset,D-Sub15in*1,D-Sub15out*1 |
| Luminance white(cd/m2) | 500 cd/m2 | operation mothed | Renote control |
| Contrast ratio | 4000:1 | video format | PAL/NTSC |
| wide voltage design | 100-240V AC | Frame dimension(mm) | up:2mm,below:1.5mm, left:2mm,right:1.5mm |
| Power | 240W | Weight(include packing) | about 24kg |
| Shape dimension(mm) | 1213.5mm*684.3mm(W*H) | Display area size | 1210mm*680.8mm(W*H) |
| Installation hole | 600mm*400mm(W*H) | Installation mode | can choose :support,hanger, cabinet |
| Storage temperature | *-20°C-60°C | Operating temperature | 0°C-50°C |
| Shell Materrial | Metal Case + Toughened Glass Panel | quality standard | 3C,FCC,ISO9001 etc |
Ultra-narrow border design
The bilateral gap is only 3.5mm, the narrowest can reach 0.88mm
the display effect is more clear
Rich color performance
16.8M color number, richer color performance
perfectly restores the inherent color of the image
178 ° viewing angle
Viewing angle of 178 °, clear display no matter where you look at
3D noise reduction technology
Reduce the loss of pixels during signal transmission, making the picture more delicate and beautiful
Before noise reduction After noise reduction
Energy saving, low consumption, stable operation
With recycling resources and low power consumption design,
it can be continuously used for 7*24*365 without downtime,
and the backlight life can reach 60000 hours
Arbitrary screen display
According to various occasions, realize different splicing methods to meet various needs
Splicing method
Product Details
